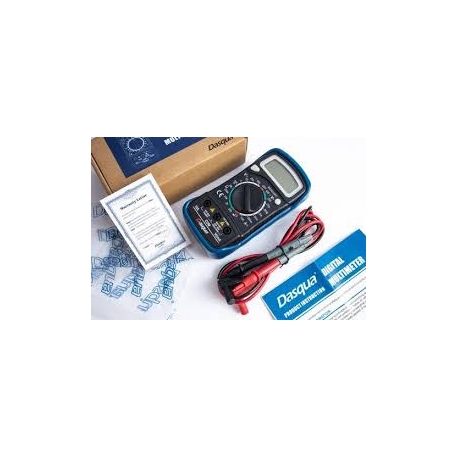

Dasqua digital AC/DC multimeter 1030-2100

Specifications
DC-Voitage

• Range: 200mV/2V/20V/200V/600V
• Resolution: 100μV/1mV/10mV/100V/1V
• Accuracy: ±（0.5%rdg+2dgt）/ ±（0.8%rdg+2dgt）

AC-Voitage

• Range: 200V/600V
• Resolution: 100mV1V
• Accuracy: ±（1.2%rdg+10dgt）

DC-Current

• Range: 200μA/2mA/20mA/200mA/10A
• Resolution: 0.1μA/1μA/10μA/100μA/10mA
• Accuracy: ±（1%rdg+2dgt）/ ±（1.5%rdg+2dgt）/ ±（3.0%rdg+2dgt)

Resistance

• Range: 200Ω/2KΩ/20KΩ/200KΩ/2mΩ
• Resolution: 0.1Ω/1Ω/10Ω/100Ω
• Accuracy: ±（0.8%rdg+3dgt）

• Continuity buzzer: about less than70±30Ω
• Diode: Open circuit voltage 3.2V
• Power supply: 9V battery, NEDA 1604 6F22 006P type

Features

• To measure DC Voltage,AC Voltage,DC Current, Resistance. Continuity tests of diode and circuit. 2000 counts display. With data hold, back light.
• Data hold
• Display backlight
• Low battery display
• Safety rating: CAT III 600V
